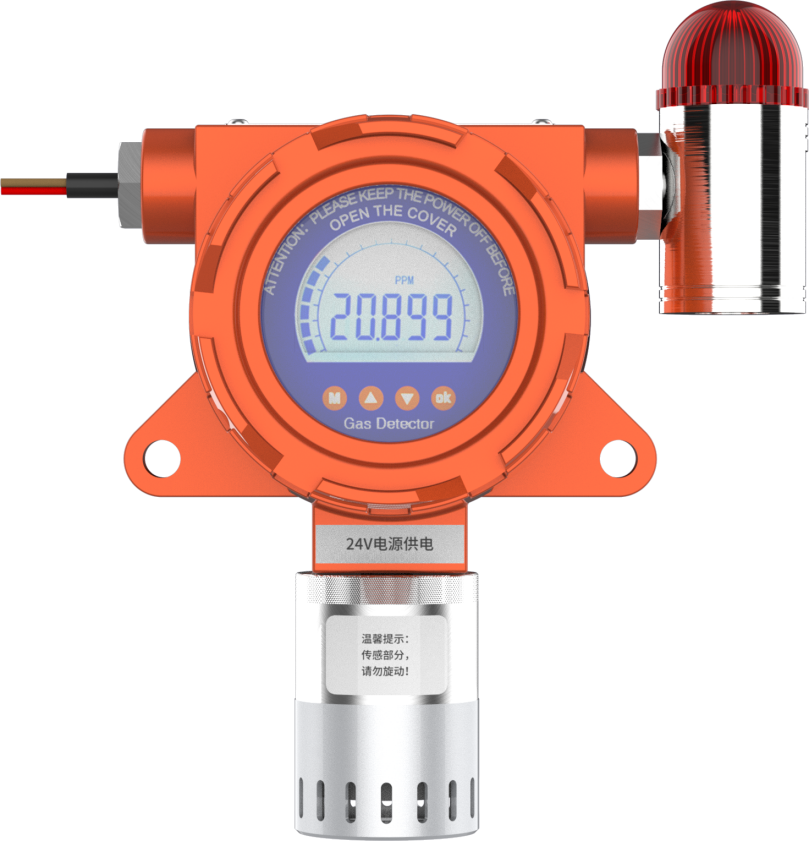

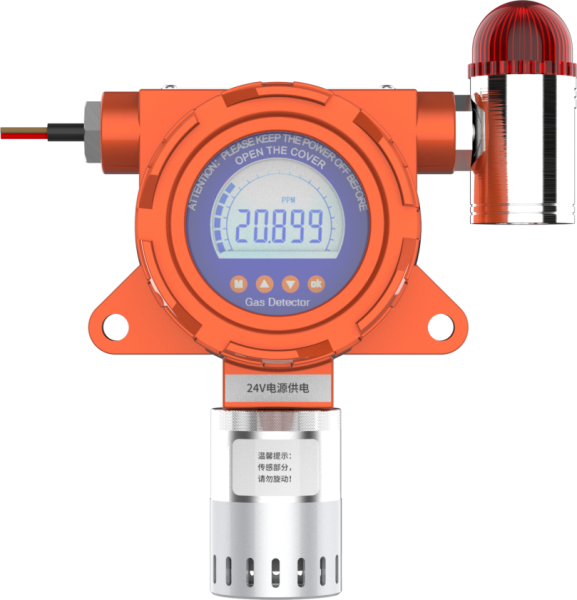

Fixed type Gas leakage monitor OC-F08 Fixed Freon gas leak detection for Refrigeration industry measurement inspecting detector

OC-F08 series online gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis. Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Fluorine F2 gas concentration.

Get A Quote
Contact Us

Description:

OC-F08 series online gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.

Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Fluorine F2 gas concentration.



Features:
4-20mA standard analog signal and RS485 digital signal output, 200~1000HZ signal output, relay output, data restore, data logger (optional);

LED screen displaying the gas concentration, gas type, unit, instrument status etc.

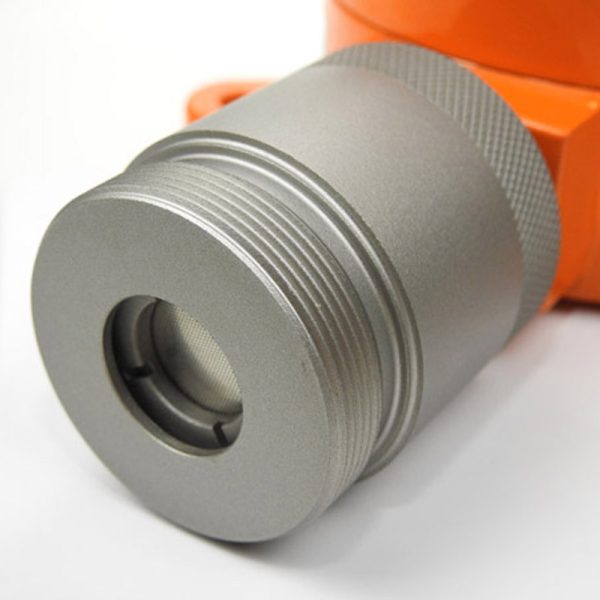

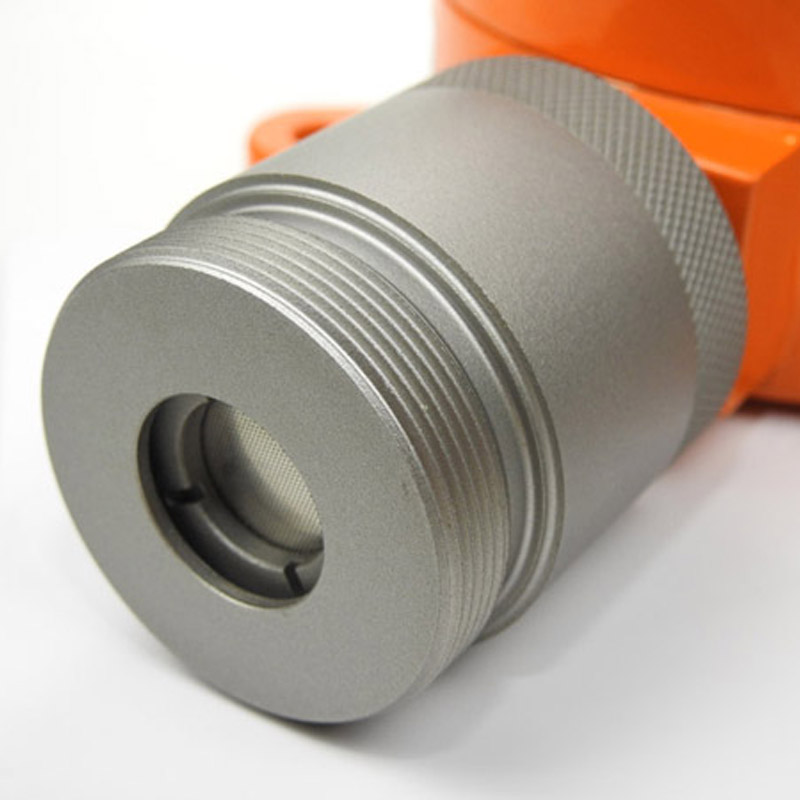

Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor

Protection function to prevent high gas concentration attack.

Display the gas concentration in ppm and mg/m3 is selectable.

Infrared remote controller operation;

With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability.

With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.



Technical Parameter:

Applicable Gas Freon gas
Detecting Range 0~1000ppm or customized
Resolution 1ppm
Sampling Diffusion or pump-suction, circulation selectable
Accuracy ≤±3%F.S
Repeatability ≤±1%
Zero drift ≤±1%(F.S/year)
Sensor Type Infrared  sensor
Sensor Life 2~3 years
Response Time (T90) ≤20s
Alarming mode Audible-visual alarm(Optional)
Operating Environment Temperature: -30℃~60℃ (Customized for special demands)

Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter

Pressure: 86kPa~106kPa

Working Voltage 24V DC(16~30VDC)
Output Signals (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc;

(Optional) Four-wire system RS485 digital signal output;

(Optional) Frequency signal 200~1000Hz output;

Two-level relay output:220VAC 0.5A, 5VDC 0.5A

Installation Means Wall mounted, Pipe type(Thread:M40*1.5 )
Material of Body Anti-corrosion material
Explosion-proof Index Ex d IIC T6
Protection Grade IP66
Electrical Interface 3/4″NPT(Female Screw)、1/2″NPT(Female Screw)
Transmit Distance ≤2000m
Dimension 210 mm×140 mm×92 mm(L×W×H)
Weight About 1.6Kg
Standards GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
