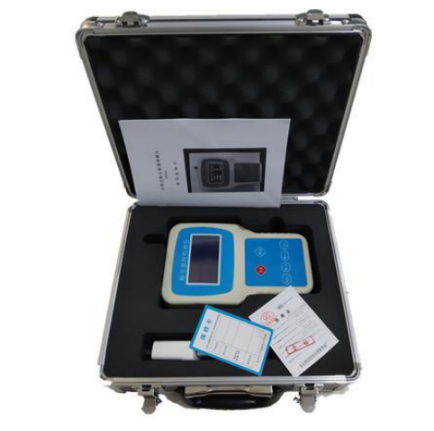

JYB-6A Dust concentration detector
Product Instruction:
The JYB-6A handheld Dust concentration detector is a direct-reading dust detector, which is mainly used for dust particles in industrial and mining enterprises.Particulate matter (TSP, PM10, PM2.5) concentration detection and over-standard alarm.
occasions of use:
1. Determination of dust concentration on industrial sites
2. Dust concentration monitoring at the exhaust port
3. Occupational Hygiene, Health and Quarantine Monitoring
4. Test breathing equipment or air filtration efficiency
5. Test powder for scientific research, filter material performance test, etc.
6. Detect the dust concentration of air environment quality, workplace, transportation and other occasions, and identify Airborne dust concentration.
Technical Specification:
| Dust measurement category | :PM2.5,PM10,TSP |
| Dust measurement range | 0.001~40.0mg/m³ or various specifications can be customized |
| Temperature measurement range | -30°C—-200°C Humidity RH (0-95)% |
| Detection sensitivity | 0.001mg/m³; repeatability error: ≤±3% |
| Air sampling flow | 2.L/min (0.1 f t 3/min)
|
| Sampling time | 1 second…100 minutes Manually set the time arbitrarily.
Dust quality can be read directly Concentration (ug/m3) |
| With self-cleaning correction function | |
| Working environment | Temperature (-30-75°C); Humidity RH (20-80)%
pipe temperature(0-80℃) |
| Working power | Built-in 5VDC lithium battery can work continuously for more than 3 hours, equipped with USB charger, support mobile power charging |
| Alarm threshold | Freely set the alarm threshold, automatic alarm when exceeding the standard, the factory default alarm value is
5000ug/m3 |
| Auto Calibration Function | Comes with a unique automatic calibration function, power-on self-test |
| volume | 210mm×130 mm×50 mm
|
| weight | 2KG
|
| Body Material | ABS and PC |
| Package | Aluminum alloy box |
| Dimensions | 140*73*32mm |
| Weight | 300g (with charger) |
| Warranty | 1 years |
