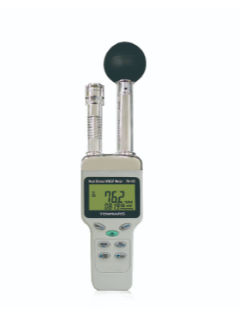

TD-188D HEAT STRESS WBGT METER
Features:
Quick-response capacitance sensor.
Accurate measurement for wet bulb globe
temperature(WBGT), black globe
temperature(TG),humidity(%RH), air
temperature(TA),wet bulb(WET) and dew point(DEW).
Max/Min and data hold.
Low battery indication ” “.
LCD display with LED backlight.
Single data record.
Viewing data records.
Switch the temperature unit to ℃ or ℉.
Brass black ball in 50mm diameter.
WBGT alarm setting.
Auto power off with disable function.
Interface: USB PC serial interface.
Data logging capacity :12000 records.
Sampling interval: Max 24 hours; Min 1 Second.
Applications:
In order to measure the WBGT index, you should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the heat stress on working man.
ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
Electrical Specifications (23℃±5℃)
| Wet bulb globe temperature (WBGT) | ||||
| Unit | Range | Resolution | Accuracy
@15~40°C |
|
| indoor&Outdoor without sunlight |
°C | 0~59.0 | 0.1 | ±1.0 |
| °F | 32.0~138.0 | 0.1 | ±1.8 | |
| Outdoor With sunlight | °C | 0~56.0 | 0.1 | ±1.5 |
| °F | 32.0~132.0 | 0.1 | ±2.7 | |
| ※indoor & outdoor without sunlight:WBGT = (0.7×WET)+(0.3×TG)
Outdoor with sunlight:WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA) |
||||
| Air temperature (TA) | |||
| Unit | Range | Resolution | Accuracy
@15~40°C |
| °C | 0~50.0 | 0.1 | ±0.8 |
| °F | 32.0~122.0 | 0.1 | ±1.5 |
| Black globe temperature (TG) | |||
| Unit | Range | Resolution | Accuracy
@15~40°C |
| °C | 0~80.0 | 0.1 | ±0.6 |
| °F | 32.0~176.0 | 0.1 | ±1.1 |
| Relative Humidity (%RH) | |
| Measurement Range | 1%~99% |
| Accuracy | ±3.0%RH(20~80%)at 25°C
±5.0%RH(<20%,>80%) at 25°C |
| Resolution | 0.1% |
| Dew point temperature (DEW) | ||
| Unit | Range | Resolution |
| °C | -35.3~48.9 | 0.1 |
| °F | -31.5~120.1 | 0.1 |
| The value is calculated from the RH and Air temperature. | ||
| Wet bulb temperature (WET) | ||
| Unit | Range | Resolution |
| °C | -21.6~50.0 | 0.1 |
| °F | -6.9~122.0 | 0.1 |
| The value is calculated from the RH and air temperature. | ||
