Product Description

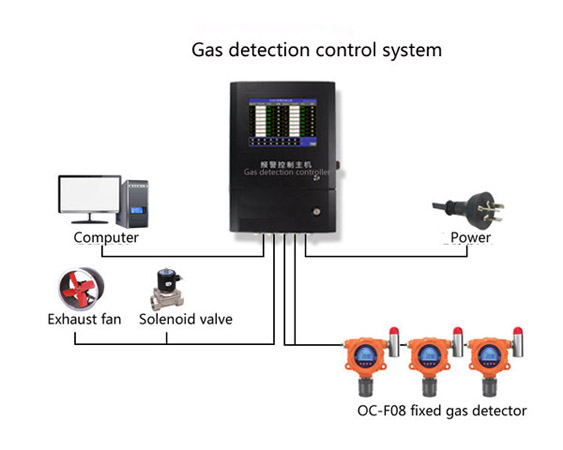

The industrial monitoring system is equipped with a smart touch screen for easy operation. Up to 8 gas sensors can be connected to detect the composition and content of gas.The product has a wide application. It can be used to detect hydrogen sulfide, carbon monoxide, oxygen, sulfur dioxide, phosphorus, ammonia, nitrogen dioxide, hydrogen cyanide, chlorine dioxide, chlorine dioxide, ozone and combustible gas and other gases. Our Gas Detection Controller can realize the special occasion measurement needs. It is compact in size and light in weight, can be used for a long time. Please let us know if you are interested!

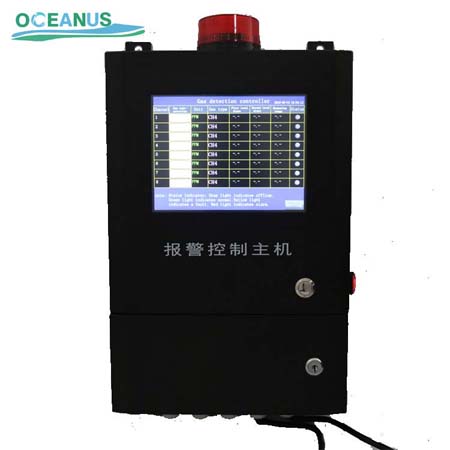

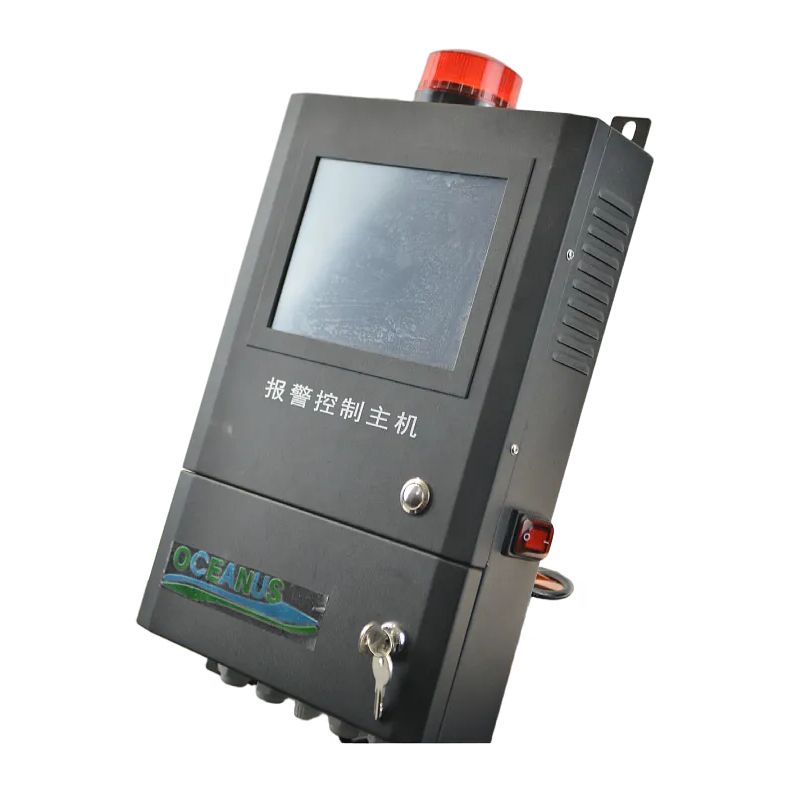

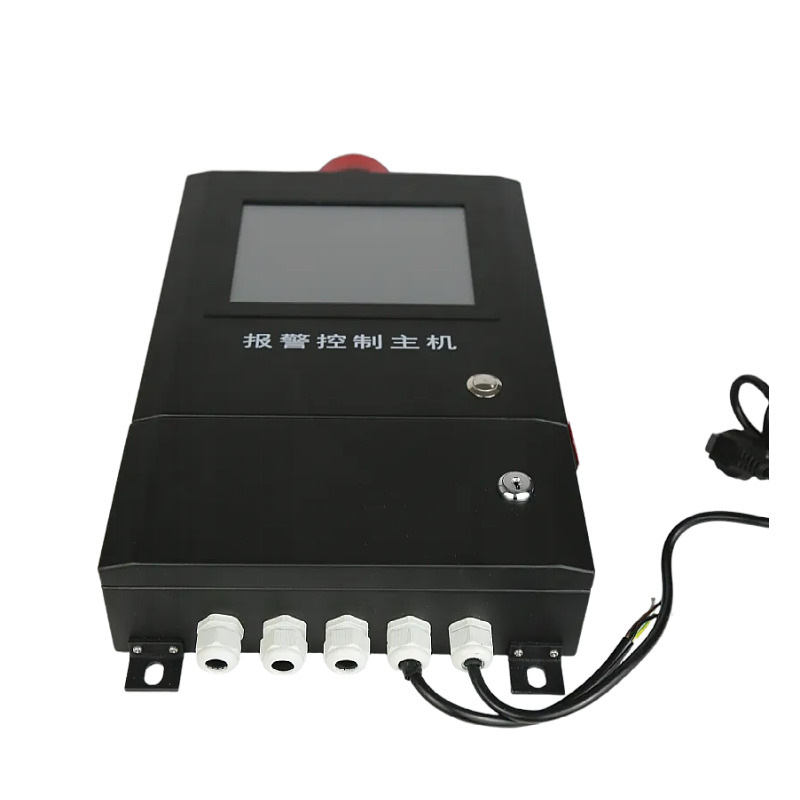

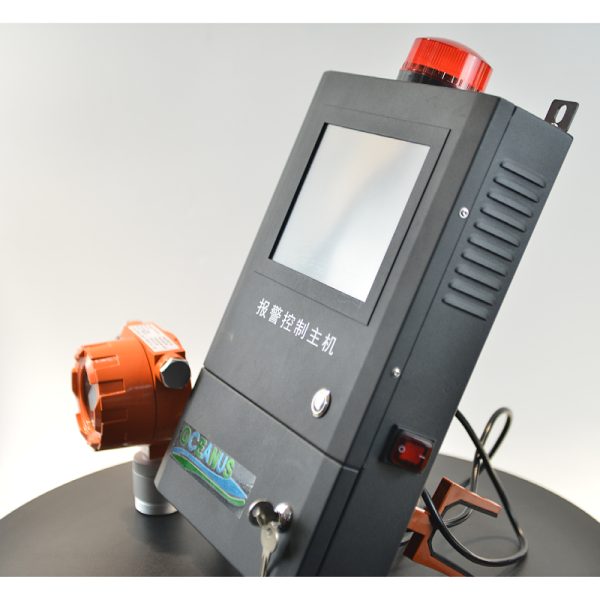

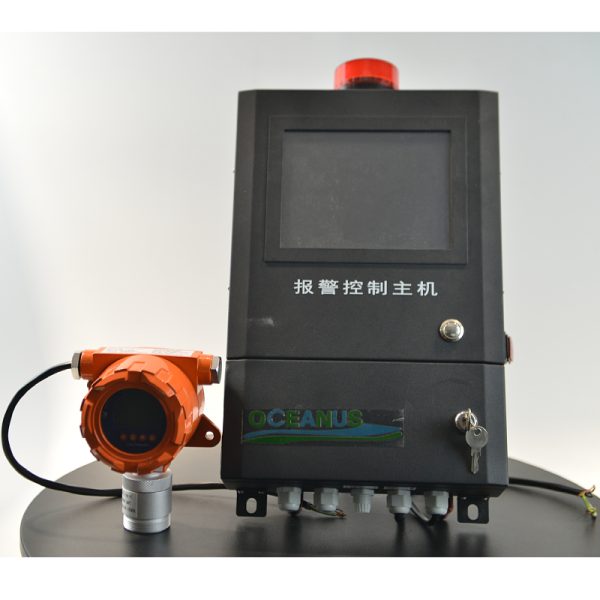

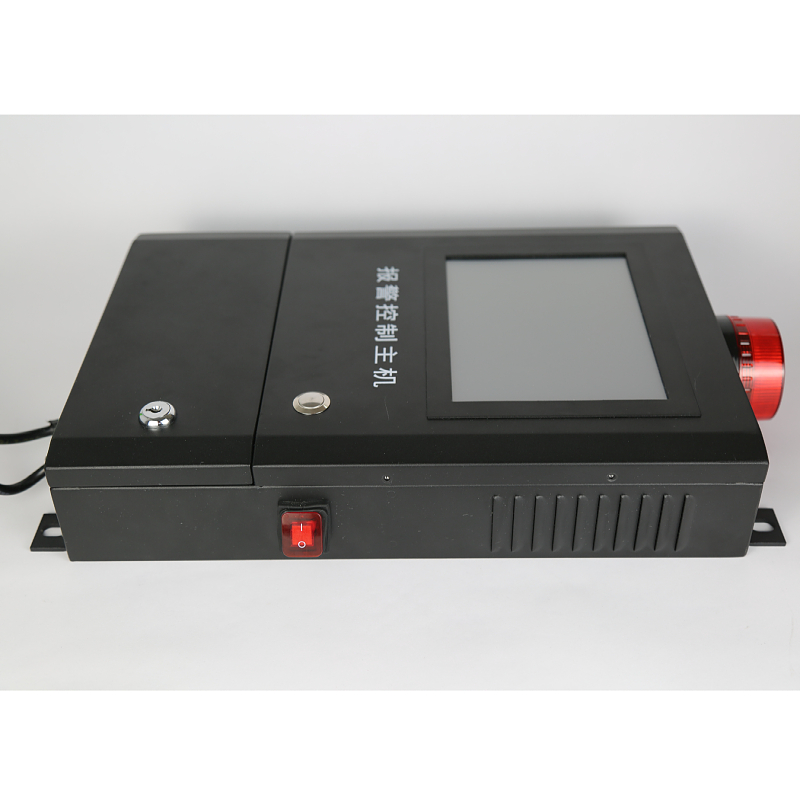

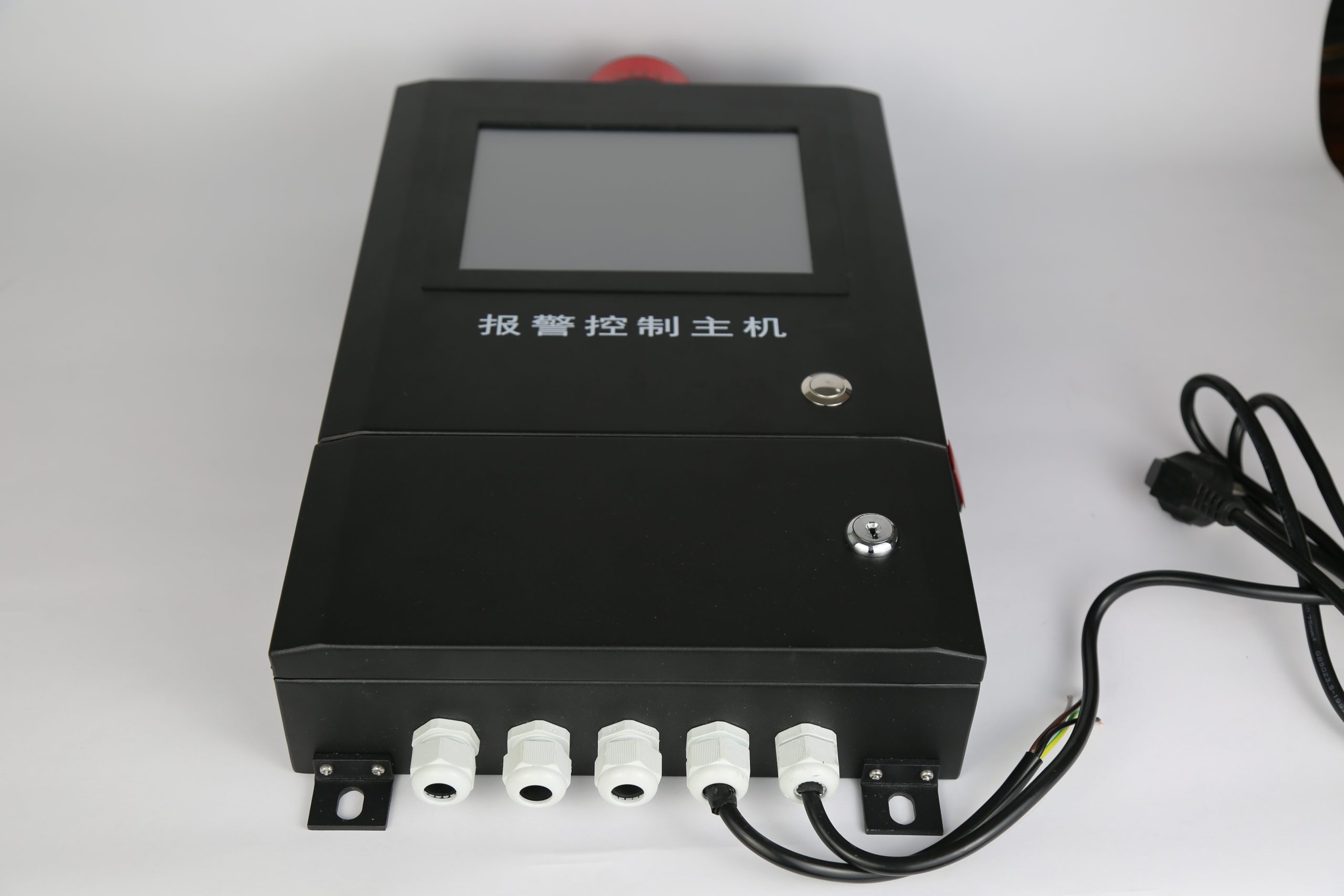

Product Display
Specification
| Item | Description |
| Product name | Gas detection controller |
| Display | 8 inch TFT LCD touch screen |
| Power supply | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W(according to different channels) |
| Output voltage | DC24V±15% |
| Input signal | 4~20mA/ RS-485 |
| Relay output | 4 relay output with optional NO or NC |
| Relay contact capacity | 5A, 30VDC or 5A, 220VAC |
| Alarm mode | Audible, visual |
| Installation mode | Wall-mounted |
| Suitable gas detector | Gas detector with 4~20mA signal output |
| Gas detector quantity | ≤64pc |
| Communication distance | ≤2000m |
| Working temperature | -10℃~+50℃ |
| Working humidity | 10~95%RH（Non-condensation） |
| Size | 400mm*280mm*80mm |
| Weight | About 3.6kg |
| Protection grade | IP54 |
| Quality standard | GB 16808-2008 GB 15326-1994 |
