OC-Y16A Intelligent multi-parameter digestion instrument
Description:

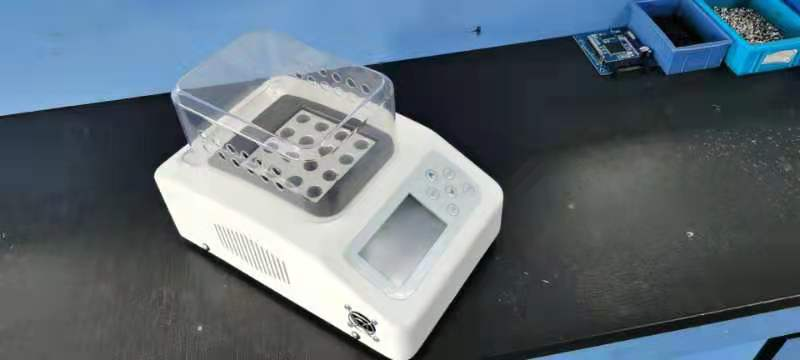

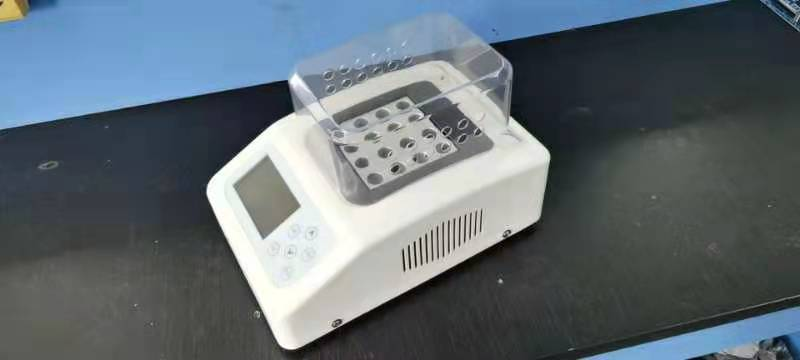

A new type of intelligent multi-parameter digestion instrument, the digestion instrument is easy to operate, stable and reliable, using a large-screen high-resolution LCD display, the experiment is visible, and the high light transmission protective cover is safe and allows the whole experiment to be visible. It is widely used in the digestion reaction of samples in electroplating, sewage treatment plants, coking, papermaking, petrochemical, fur, leather, pharmacy, video processing, etc. It is also suitable for other purposes.
Features:
Color LCD display, using large-screen high-resolution LCD display;
Meet the standards, all technical indicators are fully in line with or higher than the standards;
The experiment is visible, and the high-transmittance protective cover is safe and allows the whole experiment to be visible;
Wide range of parameters, digestion temperature, timing time can be adjusted freely in a wide range, better passability;
After the water sample is put in, it enters the waiting state, and the timing starts automatically after the temperature rises to the digestion temperature;
Highly intelligent, the instrument prestores 5 kinds of digestion programs and a set of custom digestion programs.
Technical Parameter:
| Items | Specification |
| Heating rate | Rise to the set temperature of 165℃ within 10 minutes |
| Dissolve quantity | 16 support |
| Dissolve capacity | 0-10ML |
| use way | Can be used for COD, total nitrogen, total phosphorus |
| Pre-stored digestion program | COD, total nitrogen, total phosphorus, hexavalent chromium and other six procedures and custom digestion procedures |
| Digestion temperature | 45-300℃（Users can set by themselves） |
| Temperature indication error | ≤±2% |
System specification:
| Delay protection | Stand by |
| Smart heating | Stand by |
| Custom mode | 3 pcs |
| Clock real-time display | Stand by |
| Fast switching of digestion mode | Stand by |
| Timing function | Stand by |
| Program upgrade | Stand by |
| Warm up complete alarm prompt | Stand by |
| Over temperature alarm prompt | Stand by |
| Instrument overheating protection | Stand by |
| Digestion protection board | Prevent burns caused by misoperation |
| Digestion shield | High light transmission integrated safety protection |
| Rated voltage | AC220V/50Hz municipal power supply |
| rated power | 900W |
| Dimensions (mm) | 340*240*214 |
| Instrument weight (KG) | 6.0 |
| Display method | 128·64 LCD screen |
| Timing range | 1 minute-96 hours |
Applications:
It is suitable for the digestion reaction of electroplating and sewage treatment plants to analyze water quality samples;
It is suitable for the digestion reaction of water samples in coking and petrochemical analysis;
Applicable to the digestion reaction of water samples in papermaking analysis;
Applicable to the digestion reaction of fur and tannery analysis water samples;
Applicable to the digestion reaction of water samples for pharmaceutical and food processing analysis;
