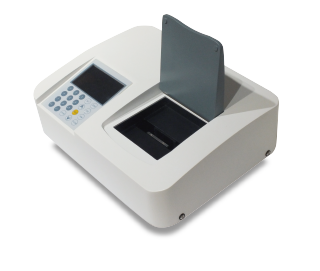

OC-YC COD analyzer
Description:
The new desktop water quality rapid tester, the tester is simple to operate, and the results are stable and reliable. It is suitable for water quality testing of industrial wastewater, urban domestic sewage and sewage treatment projects, and surface water of rivers, lakes and seas. With intelligent program design, no manual intervention is required, the measurement value is accurate, and the use is convenient. It can be widely used in laboratory water quality testing in industry, municipal administration, environmental protection, education and scientific research, disease control and other fields.
Features:
Large screen display: 4.3-inch TFT color screen display, user-friendly interface operation;
Unique high-precision filter system, the instrument is more stable, and the measurement accuracy is higher;
Support large-capacity storage, support U disk storage, which is greatly convenient for users to use;
Support curve automatic correction and automatic saving;
Quickly and accurately determine the concentration of waste water species to be tested;
The instrument adopts the international cuvette colorimetry method;
Support users to build their own curves according to different measurement requirements, and the segmentation coefficient K can be adjusted according to the measurement requirements;
Cold light source, narrow band interference, light source life up to 10W hours;
With the new ARM9 main control chip, the instrument responds faster, with a larger capacity of up to 500M memory;
5 manufacturer curves, 195 extended curves, 200 in total;
Technical Parameter:
| Items | Description | Specification |
| COD | Measuring range | Low concentration: 0-10mg/L (permanganate method) 10-100mg
High concentration: 100-10000mg/L |
| Anti-chlorine interference | [Cl-]﹤1000mg/L（no effects）
[Cl-]﹤8000mg/L（Optional） |
System specification:
| Measurement accuracy | ≤±5% |
| Measuring time | 15 minutes-20 minutes |
| Repeatability | ≤±5% |
| Light source life | 100,000 hours |
| Optically stable | ≤0.001A/10min |
| Colorimetric method | cuvette |
| Storing data | Can store more than 5000 Article |
| Number of curves | 200 can be set Article |
| Display method | TFT color screen display |
| communication method | RS-232C serial port (printing) |
| printing method | Printer can be connected (optional) |
| Operation interface | Chinese and English optional |
| Batch volume | 20 water samples |
Applications:
Suitable for industrial wastewater detection;
Applicable to the detection of urban domestic sewage;
Applicable to sewage treatment engineering inspection;
Suitable for water quality testing of surface water in rivers, lakes, and seas;
Widely used in laboratory water quality testing in industry, municipal administration, environmental protection, education and scientific research, disease control and other fields;
