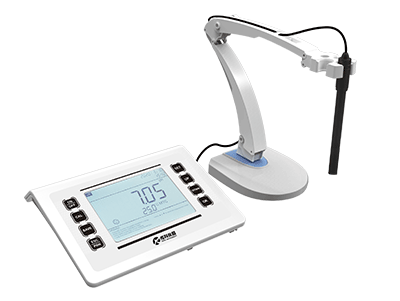

OC-YP903 Dissolved oxygen analyser
Description:
The new type of laboratory benchtop dissolved oxygen meter is simple, convenient and quick to operate. It is suitable for aquaculture, water source testing, sewage treatment and environmental protection testing industries, and has a wide range of applications in the fields of re-education and scientific research.
Features:
6.5-inch LED screen, Omron long-life touch buttons;
Equipped with a special dissolved oxygen electrode calibration sleeve, the electrode polarization only needs 3-5min;
Meet the GLP requirements of international standards, with functions such as automatic calibration and automatic temperature compensation;
Combined diaphragm cap, when replacing the heat-sensitive membrane, screw the new diaphragm cap onto the electrode;
The instrument is equipped with a Bluetooth module as standard, supports wireless Bluetooth printing, which is convenient for users to operate;
Large-capacity storage of 2000 sets of measurement data, the data can be transmitted via U disk or opened via EXELL;
The polarographic dissolved oxygen electrode with a new structure can simultaneously measure temperature, salinity and dissolved oxygen;
Comply with IP54 dust-proof and splash-proof design;
Technical Parameter:
| Items | Specification |
| Dissolved oxygen range | （0~20.00）mg/L（ppm）（0~200.0）% |
| Dissolved oxygen resolution | 0.01/0.1 |
| Dissolved oxygen accuracy | Electric meter：±0.1mg/L
Matching：±0.40mg/L |
| Dissolved oxygen saturation | （0~200.0）% |
| Saturation resolution | 1/0.1% |
| Saturation accuracy | ±2.0%FS |
| Temperature measurement range | （-5~130）℃ |
| Temperature resolution | 0.1℃ |
| Relative temperature accuracy | ±0.1℃ |
| Temperature compensation | Manual / Auto（-5.0~105.0）℃ |
| Salinity compensation | ±2% |
| stability | （±0.07mg/L）/1h |
System specification:
| Display screen | 6.5 inch HD LED screen |
| Data storage | 2000 groups, external USB can be mass storage |
| Newsletter connector | USB2.0, Bluetooth wireless |
| Working conditions | temperature: 5-40 degrees
humidity: 5-85% |
| Power supply | 9V2A (110-220, 50Hz-60Hz adapter) |
| Product size and weight | 160 × 190 × 70mm/880g |
| Display parameters | Concentration, saturation, temperature |
Applications:
It is suitable for aquaculture, water source testing, sewage treatment and environmental protection testing industries, and has a wide range of applications in the fields of re-education and scientific research.
