Description:

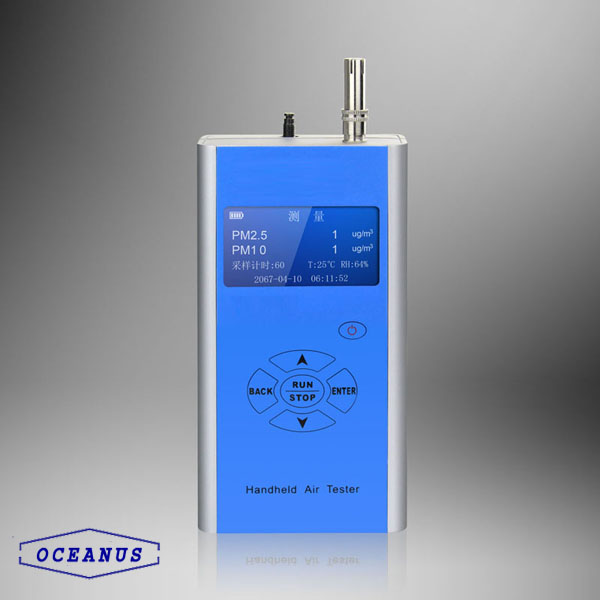

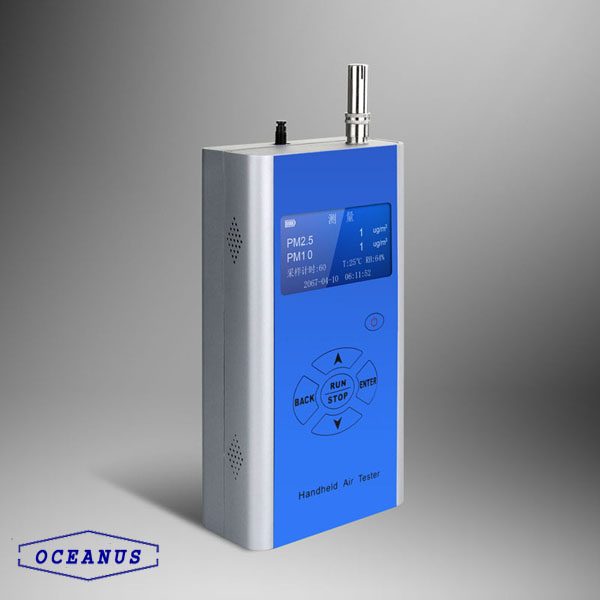

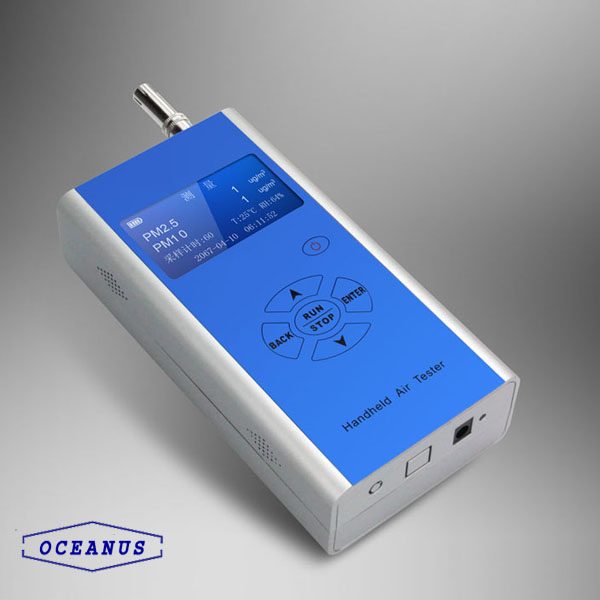

OC-200 PM2.5 Handheld measuring instrument is the latest innovation on demanding application of particle distribution measurement. It can be used in measuring PM2.5 and PM10 in the air. It can also measure the humidity and temperature in air.
Applications:
The Portable PM2.5 detector can be widely used in the disease control center, health supervision, environmental monitoring, public area, family and other environment where need to detect the air quality detection.
Features:
Wide measuring range.
Fast response
Real-time reading
No warm-up time
Auto backlight
Simple operation, no maintenance
English version menu.
Technical Parameter:
| Working principle | Light scattering method |
| Light source | Laser diode (＞100,000 hours) |
| Particle size | PM2.5, PM10 |
| Range | 0-500μg/m3 |
| Display unit | μg/m3 |
| Sensitivity | 1μg |
| Sampling time | 60s |
| Power supply | Rechargeable lithium battery (7.4V/1020mAh)
AC adapter (input: 100~240V, output 9V/1.5A) |
| Battery working period | More than 3 hours |
| Dimension | 93(W)*46(D)*180(H)mm |
| Weight | About 600g (with battery) |
| Operating environment | Temperature: 5~45℃; Humidity: ＜90%RH |
| Standard accessories | AC adaptor, operating manual, RH/T sensor |
If you have any questions on the Air Quality monitor system， welcome to contact us:
