Description:

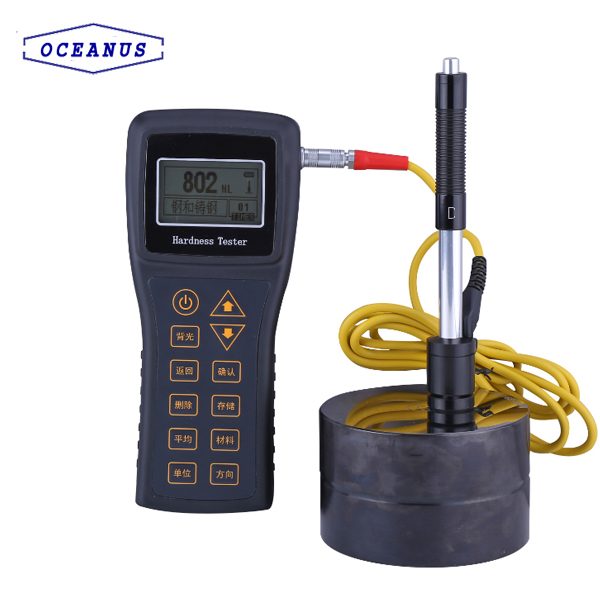

SHL-150 Portable Leeb Hardness tester used to measure the hardness value of the HRC, HRB, HL, HB, HV, HS. In accord with the standards of the ZBN71010-1990, GB/T 17394-1998, JB/T9378-2001.
SHL-150 Leeb Hardness tester can equip 7 kinds of different impact device, it can identify the type of the impact device automatically, when change the impact device it no need to re-calibrate. Designed with the advantage of super low power consumption, with the big capacity chargeable lithium battery and could work for a long time, the small and light size makes it’s operated easily.
According to the Leeb hardness tester working principle, it can measure many kinds of metal materials. Support for the Steel material, when using the “D/DC” impact device to test the Steel, it could read the HB value directly. Convenient to convert to the all hardness scale of HL, HB, HRB, HRC, HRA, HV, HS.
Features:
Display: With the English menu and easy operation. The white backlight display makes it convenient for the dark place.
Data communication with USB port and other optional.
Can equipped with7 kinds of impact device and when change the impact device no need to re-calibrate.
Data memory: 48~350 groups of data (including of the each measuring data, average value, date, impact direction, frequency, material, hardness unit, etc.)
Alarm output: Could set the high alarm data and low alarm data, when beyond the range will alarm, suitable for the batch testing.
Calibration function: With the indication software calibration function.
Software (Optional): According to customers’ need to equip the software to manage the measuring data.
Technical parameter:
Indication error and repeatability:
| Item | Impact device | Standard Leeb Hardness block value | Indication error | Indication repeatability |
| 1 | D | 760±30HLD
530±40HLD |
±5 HLD
±8 HLD |
5 HLD
8 HLD |
| 2 | DC | 760±30HLDC
530±40HLDC |
±5 HLDC
±8 HLDC |
5 HLD
8 HLD |
| 3 | DL | 878±30HLDL
736±40HLDL |
±10 HLDL | 10 HLDL |
| 4 | D+15 | 766±30HLD+15
544±40HLD+15 |
±10 HLD+12 | 10 HLD+12 |
| 5 | G | 590±40HLG
500±40HLG |
±10 HLG | 10 HLG |
| 6 | E | 725±30HLE
508±40HLE |
±10 HLE | 10 HLE |
| 7 | C | 822±30HLC
590±40HLC |
±10 HLC | 10 HLC |
| Measuring range | HLD (170~960), HRA (59~85), HRB (13~100), HRC (18~68), HB (19~655), HV (80~976), HS (32~100) |
| Measuring direction | 360° |
| Hardness scale | HL, HB, HRB, HRC, HRA, HV, HS. |
| Impact device | D type impact device standard, optional C/G/DC/D+15/E/DL. |
| Applications | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper and forged steel. |
| Display | 128*64 LCD display |
| Data memory | 48~350 groups. |
| Power supply | 5VDC, 220VAC |
| Charging time | 2~3.5 hours |
| Battery | 3.7V, 1400mAh rechargeable lithium battery. (Working for 100hours continuously, when not open the backlight.) |
| Working temperature | 0~40 degree |
| Storage temperature | -25~70 degree |
| Communication model | USB port |
| Size | 179*77*35mm |
| Weight | About 175g |

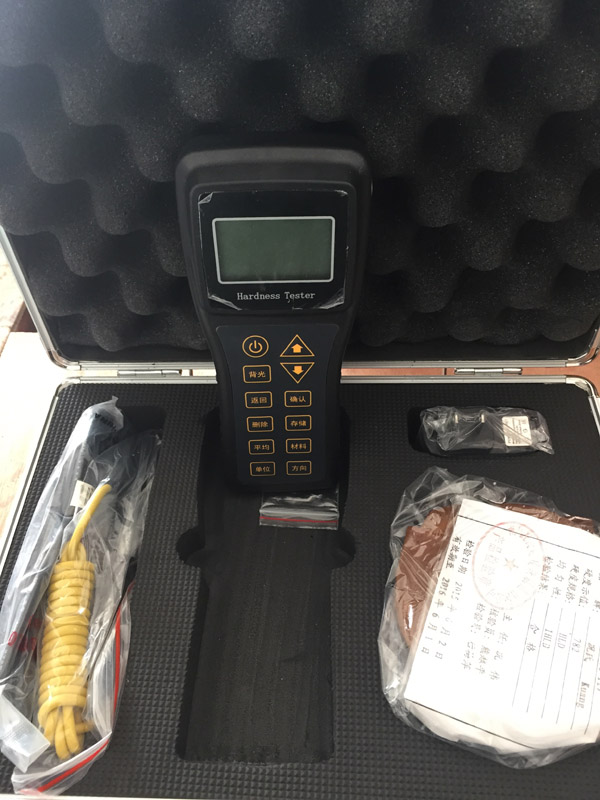

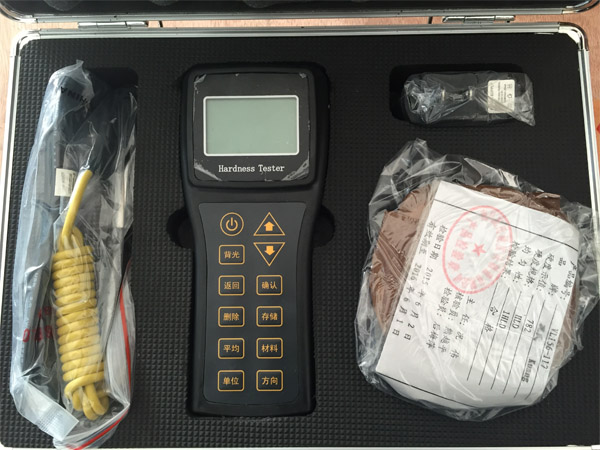

Standard accessories:
| SHL-150 Hardness tester | 1pc |
| D type impact device | 1pc |
| Nylon brush | 1pc |
| High value test block | 1pc |
| Small support ring | 1pc |
| Operation manual | 1pc |
| Charger | 1pc |
Optional accessories:
Data manage software (used on PC);
Different type Impact device and support ring;
Leeb hardness block with different value;
Thermal Printer.
