Description:

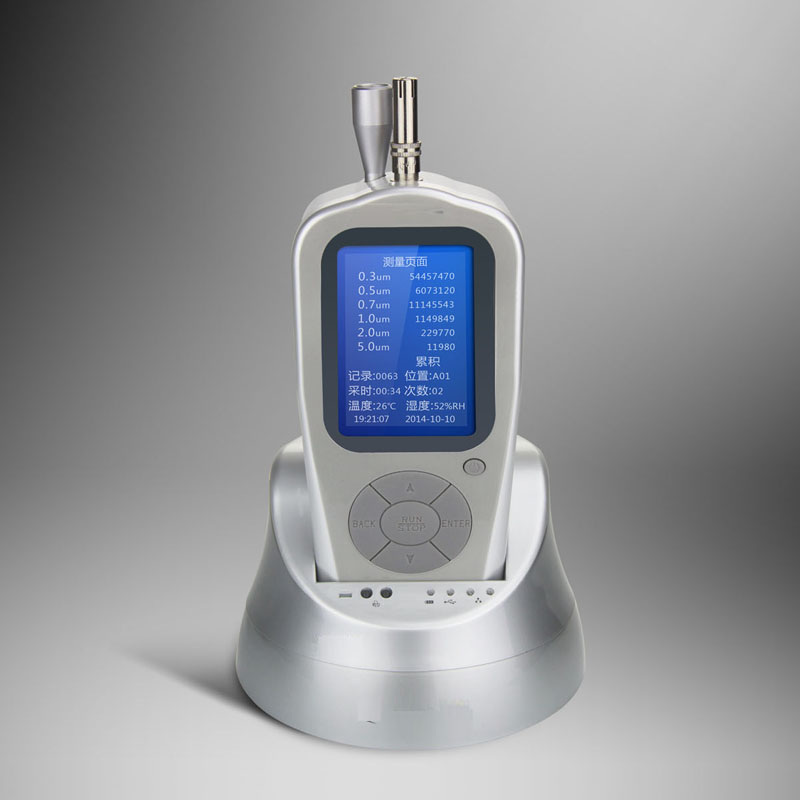

The OC-600 Handheld six channels particle counter consists of a handheld monitor with a main base unit that allows users to conduct sampling with the portable handheld monitor while easily expanding to multiple functionalities provided by the base unit. These extended functions include real-time data remote sampling, printing, data downloading, software upgrades, battery charging, etc. In addition to USB interfaces, the RJ45 interface allows users to conduct remote sampling away from the sampling location via Ethernet/Internet.
OC-600 handheld particle counter is the world’s first of its kind hybrid hand held optical particle counter. The instrument is truly a breakthrough for a new generation of particle counters that combine the traditional hand held instruments with functionalists of portable instruments. It is in compliance with the international standards (JIS B 9925:1997 and ISO14644-1) and CE certification. It supports both metric and English systems. All of its key components are made in the USA, Germany or Japan. It features high sensitivity, multiple functional capabilities, ease of use and reliability for extremely sensitive environmental measurements and advanced applications.
Functions:
Clean environment monitoring / Indoor air quality
Test/Check filter seal and efficiency / Trace contamination source
Analysis of particle size distribution
Applications:
The Model OC-600 handheld laser counter is the latest innovation in the demanding application of particle distribution measurements. It is useful in measuring particle distributions in ultra-clean environments by its single particle counting ability as well as in indoor air quality applications.
Features:
All 6 channels continuously adjustable with 0.1 micron step resolution
Combines both hand held and portable functionalists with a built-in mini-printer
USB and RJ45 interfaces for remote real-time sampling and data download
Long-distance remote sensing via Ethernet
Up to 6000 internal data memory
Excess-count-limit warnings
High precision, digital, external temperature and humidity sensors
Durable keypads with a large blue LCD display
Technical Parameter:
| Light Source | Laser diode (>100,000 hours MTBF) |
| Sensitivity | 0.3μm |
| Size Range | 0.3μm~25μm |
| Channels | User configurable on any channel with
0.1μm resolution (six default channel settings: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0μm) |
| Counting
Efficiency |
50±20% @0.3μm
100±10% (0.5μm) |
| Coincidence
Loss |
<5% @70,000 Particles/Liter |
| Zero Count | <1 count per 5 minutes |
| Flow Rate | 2.83 L /min (0.1cfm) |
| Sampling Time | User defined: (up to 59m59s) and auto repeat (up to 99 times) |
| Count Limit
Warning |
FED STD 209E (Class 1 ~ 100,000)
or ISO 14644-1 (Class 2 ~ 9) |
| Measurement | Single/repeat/Average |
| Error Indications | Count limit, loss of laser power, out of flow calibration (>±5%),
insufficient battery |
| Interface | USB, RS232, RJ45 |
| Data Memory | 6000 measurement data (1000 sets) |
| Power supply | Li-ion polymer rechargeable battery
(7.4V/2800mAH) or 9VDC AC Adapter (100~240V input) |
| Max. Operating
Time |
Continuous operation > 5 hours with Li-ion battery |
| Dimensions | Handheld: 180 (H) ×93 (W) × 46 (D) mm
Base unit: 152 (Dia.)× 97(H) mm |
| Weight | < 800 grams (including battery) |
| Environmental
Conditions |
Operating: 5 ~ 45°C, < 90%RH Storage: -20 ~ 65°C, < 90%RH |
| Accessories | Main base unit, AC adaptor, iso- kinetic probe, USB data cable,
remote sampling and data download software (CD), zero-count/purge filter, digital temperature and humidity sensor probe, traceable calibration certificate |
