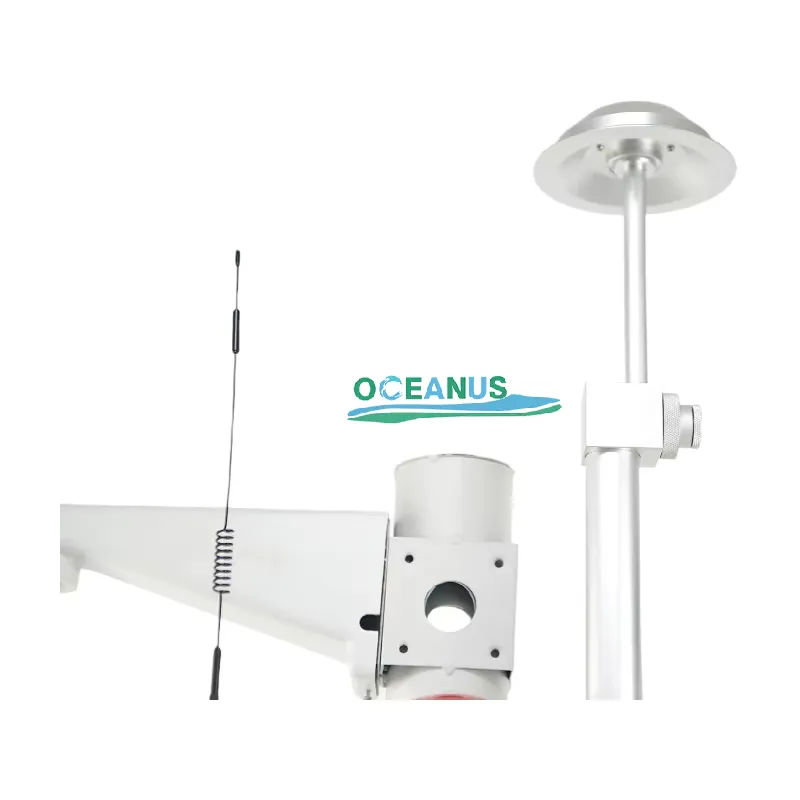

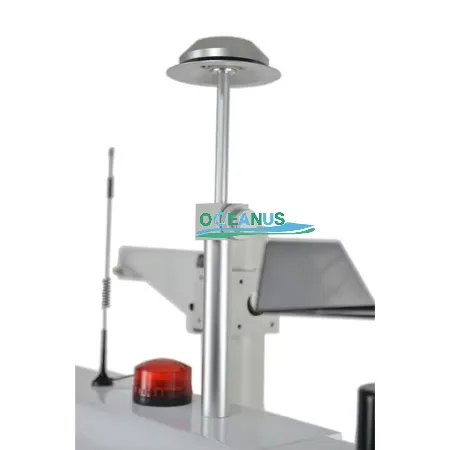

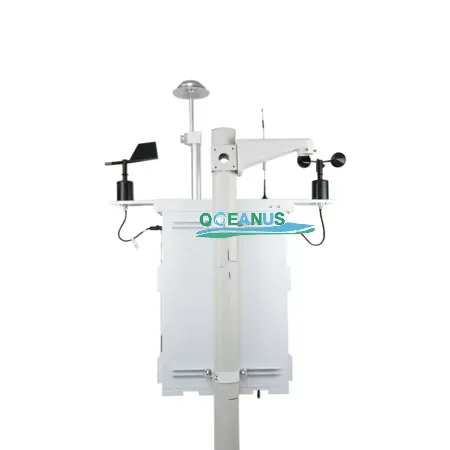

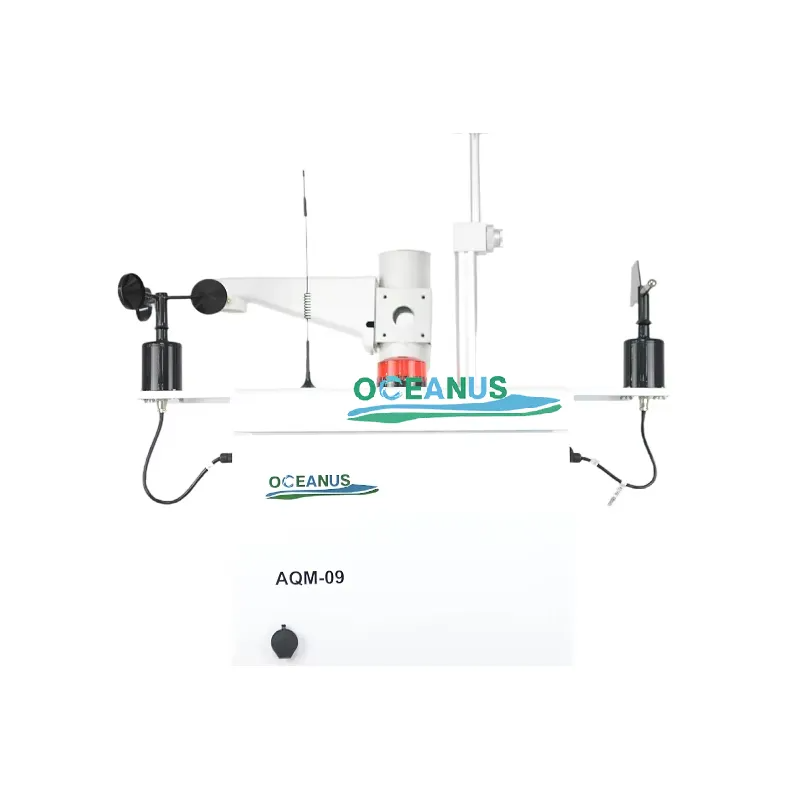

What is the AQM-09?



AQM-09 is an air quality monitoring system, it can monitor outdoor air pollutants in real-time, including SO2, NO2, O3, CO, Dust, Meteorological parameters, noise, etc. With 4G data transmission function.Free cloud platform for you to use.Optinal solar panel power supply.Can be connected to an external LED screen.The measuring range and gas type can be customized according to your needs.



The AQM-09 air quality monitoring system has become a leader in the field of environmental monitoring with its excellent real-time monitoring capabilities, data transmission functions and customization features. Whether it is urban environment monitoring, industrial park management or other scenarios that require air quality monitoring, AQM-09 can provide users with strong data support to help environmental protection and sustainable development.





What is the use of AQM-09?



It is designed to ensure the safety of the ambient air around you.

It can be used as the air quality camera around you.





Where can AQM-09 be used?





It is designed to ensure the safety of the ambient air around you, by continuously monitoring and assessing air quality. The system provides real-time feedback, alerting users to any potential hazards or pollutants in the air.



Moreover, it can be used as an air quality camera around you, capturing visual data that can be analyzed to identify airborne particles and contaminants. This allows for a more comprehensive understanding of the air quality in your environment.





Our Certificate





5ac4acd86b4d4b37d3b7bf98f240b7f

EMC

EMC

rohs

ROHS







Our After-sales service:



1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.

2. Free calibration service and provide calibration methods.

3. One year warranty and lifetime warranty





QQ20210902160759



Our Service Processes



Pre-sales Consultancy



Confirmation of order



Production



Multi-Channel Shipping



After-sale Services





Technical Parameter:



Description



Specification



Air temperature measurement range, °C -40 to 60
Limits of permissible absolute error of air temperature measurements, °C ± 0,3
Relative air humidity measurement range, % 0 to 100
Limits of permissible absolute error, % ± 2
Atmospheric pressure measurement range, kPa 30 to 110
Limits of permissible absolute error in atmospheric pressure measurements, Pa ± 2,5
Air flow velocity measurement range, m/s 0 to 60
Limits of absolute error in air flow velocity measurements, % ± 3
Air flow direction measurement range, degrees 0 to 360
air flow direction measurements, degrees ± 3
Measuring range of particle mass concentration (PM2.5; PM10), µg/m3 0 to 1000
Limits of permissible relative error in measuring the mass concentration of particles,% ± 10
Gas concentration measurement range, mg/m3

– volatile organic compounds

– sulfur dioxide SO2

– nitrogen dioxide NO2

– ozone O3

– carbon monoxide CO

– sulphide hydrogena H2S



0 to 76

0 to 5,3

0 to 3,8

0 to 4

0 to 230

0 to 28,3

Limit of permissible relative error of gas concentration measurements, %

– volatile organic compounds

– sulfur dioxide SO2

– nitrogen dioxide NO2

– ozone O3

– carbon monoxide CO

– sulphide hydrogena H2S





± 15

± 15

± 15

± 15

± 15

± 15

Terms of Use:

– ambient air temperature, °C

– relative humidity, %

– atmospheric pressure, kPa

– storage temperature, °C



– 35 to 60

0 to 90

65 to 108

– 40 to 70

Protection class IP55
Overall dimensions (L×W×H), mm, no more 500×400×300
Weight, kg, no more 20
Electrical power parameters:

– AC voltage, V

– frequency Hz



АС(220 ± 22), DC24

50 ± 1

Data transfer RS485 Modbus,

GSM LTE





Designation Quantity
Station included:

-data logger

– wind speed and direction sensor

-temperature, humidity and atmospheric pressure sensor

– gas analysis module

– particle module

set*
Manual 1 copy
Verification method 1 copy
Note*: the station is completed in accordance with the customer’s requirements according to the agreed order specification.
