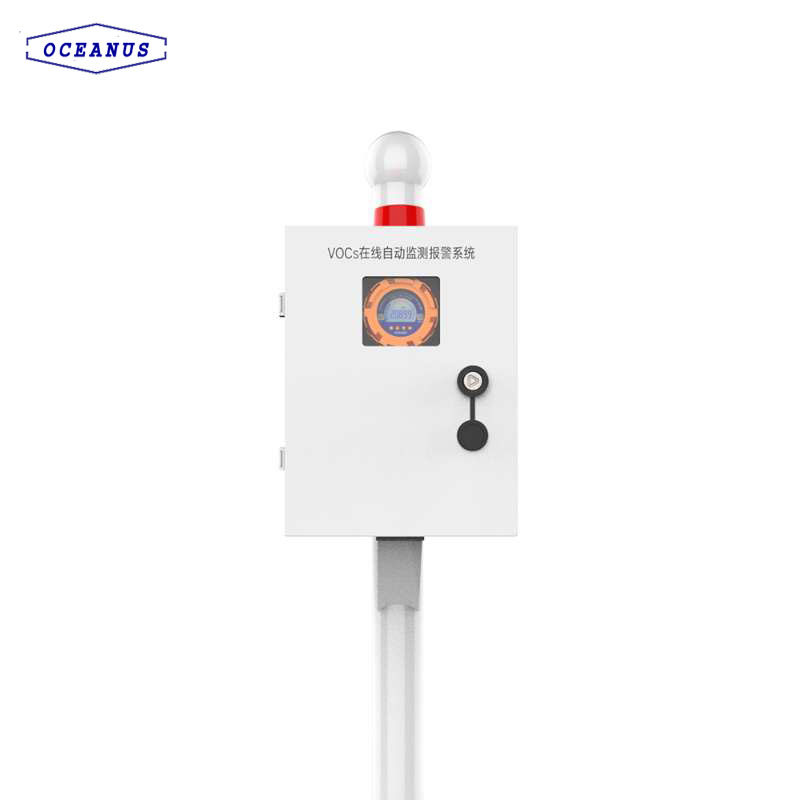

The VOCs monitoring system is installed around the entrance and exit of the closed production workshop and the open production equipment. It can monitor the VOC gas continuously and online, also transmits the VOC concentration in the air to the central control room by wireless transmission and transmits the VOC concentration to the management department by data transmission.
Features:
High performance PID sensor from UK, good stability and repeatability, long working life.
Suitable for long time online working.
Display the real-time data.
DTU signal transmission and can connect the related platform.
Easy installation and no need to adjust.
Can choose the explosion proof solution, for different working place.
Application:
Exit and Entry of the workshop;
Surrounding the plant.
Technical specification:
|
Working principle
|
PID
|
|
Measuring range
|
VOCs: 0~50/200/1000/2000/5000/10000 ppm or customized
|
|
Resolution
|
0.01ppm, 0.1ppm, 1ppm
|
|
Precision
|
≤±3%F.S
|
|
Repeatability
|
≤±2%
|
|
Response time
|
＜30S(T90)
|
|
Power voltage
|
24VDC
|
|
Working environment
|
Pressure: 80Kpa-120Kpa
Temperature: -20℃～+50℃;
Humidity: 10%RH ~95%RH(non-condensing)
|
|
Alarm mode
|
Audible-visual alarm
|
|
Monitor unit
|
Explosion proof PID gas monitor
|
|
Sampling mode
|
Pump suction and Diffusion sampling selectable
|
|
Optional
|
Flow meter, Filter
|
|
Standard output
|
Two level relay output: 220VAC 0.5A or 5VDC 0.5A;
RS485, can equip with wireless module;
|
|
Optional output
|
GPRS; RS232; USB
|
If you are interested, pls contact us: Email: info@china-oceanus.com; Tel: +86-371-60998169
