Description:

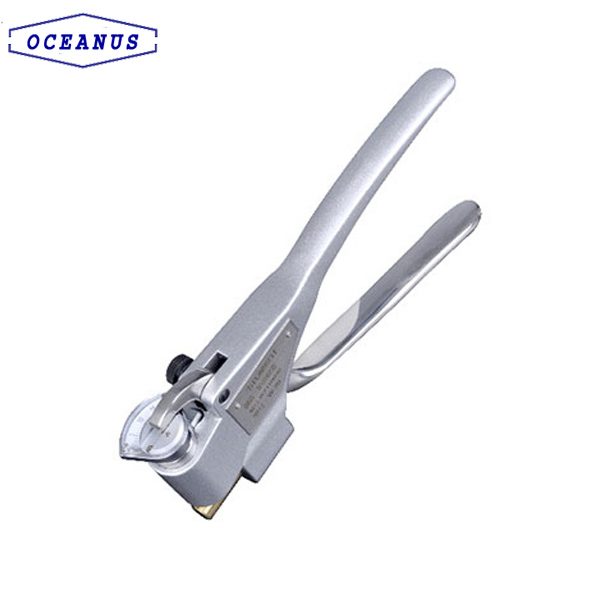

W-B92 Webster hardness tester is the portable Hardness tester operated by single hand. It can test the material hardness of the soft steel quickly and read the hardness directly, such as the low carbon steel, Stainless steel. W-B92 Webster Hardness tester used in many different steel products, such as the cold rolled plate, hot rolled plate, galvanized sheet, seamless steel tube, welded pipe, etc.
Features:
W-B92 Webster Hardness tester used to measure the Testing profiles, Tubes and Plates, especially suitable for the production site, sales site and the construction site for rapid and non-destructive inspection of the products hardness.
The standard block all tested by the standard hardness machine.
The Webster Hardness value can be switched to the HV, HB, HRB and tensile strength value.
Applications:
Check the workpiece whether heat treatment and the effect of the heat treatment.
Check the workpiece whether is inappropriate alloy processing.
Test the workpiece and parts which are too long or overweight unsuitable for the lab testing.
For the production inspection, acceptance inspection and the quality inspection
Technical parameter:
| Measuring range | 0~20HW |
| Accuracy | ±0.5HW |
| Measuring range | equivalent to 48~100HRB;
90~253HV; 85.5~241HB; 285~810MPa/mm2(Tensile strength). |
Standard accessories:
| W-B92 Hardness tester | 1pc |
| Standard block | 1pc |
| Spare penetrators | 1pc |
| Calibration wrench | 1pc |
| Small screwdriver | 1pc |
| Operation manual | 1pc |
| Case | 1pc |
Optional accessories:
Penetrators and Standard block
Our company provides the different type Hardness tester, including of the Rockwell Hardness tester, Leeb Hardness tester, Barcol Hardness tester, Webster Hardness tester, Micro Hardness tester.
If you have any questions on the Hardness tester, welcome to contact us:
